Custom Neovim statusline

How to create your own statusline inside Neovim.

Posted Updated

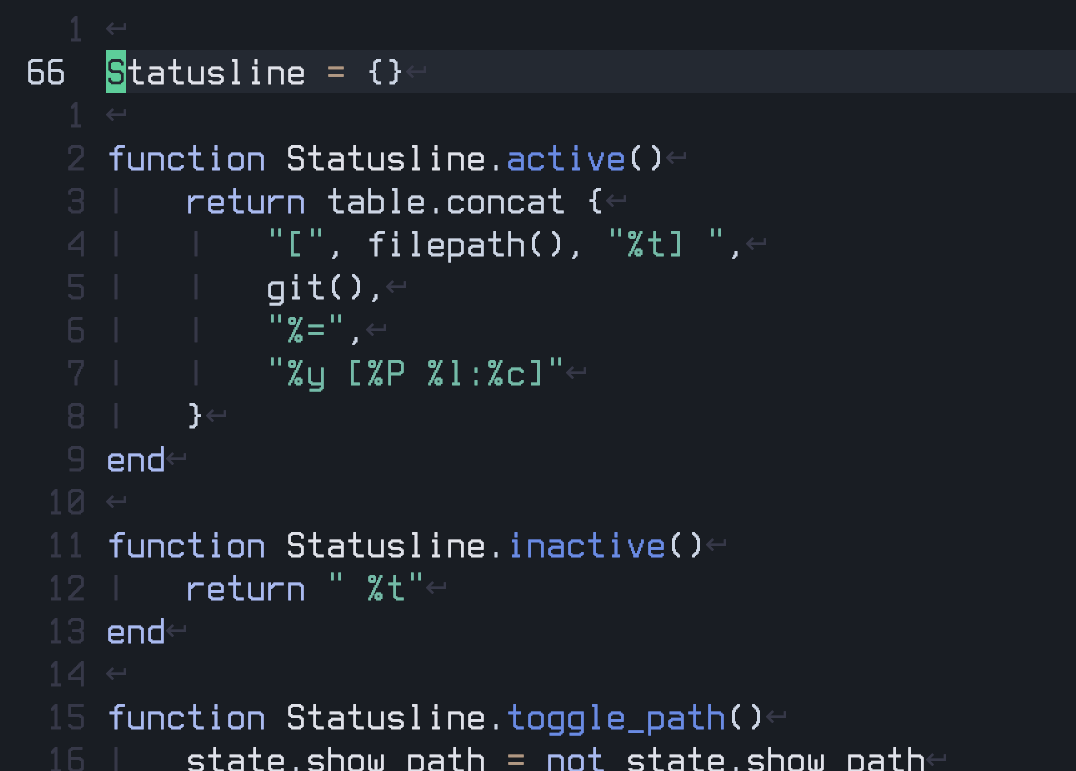

Neovim custom statusline
Neovim custom statusline
By Daniel Vieites Torres
10 min read
Custom Neovim statusline

Overview

Statusline visible Active statusline Statusline invisible Active statusline with hidden segments Statusline invisible Inactive statusline

In this post we will build a minimal, custom statusline for Neovim that shows:

  • When the window is active:
    • The current file path (relative to the current working directory).
    • The Git branch and change counts (if the file is in a Git repository).
    • The filetype.
    • How far you have scrolled in the file (percentage).
    • The current line and column of the cursor.
  • When the window is inactive:
    • Only the file name.

These are the pieces I personally find useful, but you will see that everything is fully customizable.

We will also add custom key-bindings to toggle:

  • The directory portion of the path.
  • The Git branch name (keeping the change counts).

This keeps the bar tidy when the space is tight or the names are long.

Follow this guide to understand the final implementation, that can be found at the end of the post.

Prerequisites

  • Neovim: >= 0.9.0.
  • vim.opt.laststatus = 2 (the default; always show a statusline in the previously focused window).
  • gitsigns.nvim for Git information.
  • A Nerd Font (or any font that can render icons).
  • Basic Lua knowledge.

Config structure (one example)

1
2
3
4
5
6
7
8

$HOME/.config/nvim
├── init.lua
└── lua
    ├── vt
    │   ├── specs.lua
    │   └── status_line.lua
    └── plugins
        └── gitsigns.lua

In init.lua we simply require the modules:

1
2
3

require("vt.specs")
require("vt.status_line")
-- more requires ...

I use lazy.nvim as a plugin manager, so specs.lua just lists plugin specs:

1
2
3
4
5
6
7
8

LAZY_PLUGIN_SPEC = {}

local function spec(item)
    table.insert(LAZY_PLUGIN_SPEC, { import = item })
end

spec("plugins.gitsigns")
-- more plugins ...

A minimal plugins/gitsigns.lua looks like:

1
2
3
4
5

return {
    "lewis6991/gitsigns.nvim",
    lazy = false,
    config = true,
}

All the statusline code will live in lua/vt/status_line.lua.

Statusline basics

statusline is a format string Neovim evaluates for each window. The active window uses StatusLine highlight group; inactive windows use StatusLineNC. See :h statusline.

Core building blocks

  • Alignment: %= splits the bar into zones (left | right; add another %= for a middle).
  • Truncation: %< marks where text to its left may be shortened when space is tight.
  • Literals: %% prints a literal %.
  • Expressions: %{...} evaluates an expression.
  • Highlighting: %#Group# switches highlight; %* resets to the default group.

Common built-ins (quick ref)

  • File: %t (tail), %f (relative path), %F (full path), %y (filetype)
  • Flags: %m (modified +), %r (readonly)
  • Position: %l (line), %c (col), %L (total), %p%% (percent)

Creating the statusline

Let’s start with a basic version of our statusline:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

Statusline = {}

function Statusline.active()
    -- `%P` shows the scroll percentage but says 'Bot', 'Top' and 'All' as well.
    return "[%f]%=%y [%P %l:%c]"
end

function Statusline.inactive()
    return " %t"
end

vim.api.nvim_exec2([[
    -- Starts an autocommand group with the name `Statusline`.
    augroup Statusline

    -- Clears any autocommands already in this group.
    au!

    -- On `WinEnter` or `BufEnter` events, for any file (`*`), set the `window-local`
    -- option statusline to an expression (`%!...`) that calls your Lua function
    -- `Statusline.active()`. `%!` means "evaluate this expression whenever the
    -- statusline is drawn." `v:lua.Statusline.active()` bridges to the Lua global
    -- `Statusline.active`.
    au WinEnter,BufEnter * setlocal statusline=%!v:lua.Statusline.active()

    -- On `WinLeave` or `BufLeave` events, switch that window’s statusline to the
    -- inactive variant by calling `Statusline.inactive()`.
    au WinLeave,BufLeave * setlocal statusline=%!v:lua.Statusline.inactive()

    -- Ends the group
    augroup END
]], {})

statusline is window-local, so we use setlocal. Even with laststatus=3 (a single global bar) Neovim still reads the value from the current window, so these autocommands keep it correct.

Adding git information

gitsigns.nvim populates vim.b.gitsigns_status_dict; we turn that into a segment:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

local function git()
    local git_info = vim.b.gitsigns_status_dict
    if not git_info or git_info.head == "" then
    return ""
    end

    local head    = git_info.head
    local added   = git_info.added and (" +" .. git_info.added) or ""
    local changed = git_info.changed and (" ~" .. git_info.changed) or ""
    local removed = git_info.removed and (" -" .. git_info.removed) or ""
    if git_info.added == 0 then added = "" end
    if git_info.changed == 0 then changed = "" end
    if git_info.removed == 0 then removed = "" end

    return table.concat({
        "[ ", -- branch icon
        head,
        added, changed, removed,
        "]",
    })
end

Update the active statusline:

1
2
3
4
5
6
7
8

function Statusline.active()
    return table.concat {
        "[%f] ",
        git(),
        "%=",
        "%y [%P %l:%c]"
    }
end

Already looking good!

Keybindings to hide items

Toggle file path visibility

First split the path and file name. We’ll return the directory only:

1
2
3
4
5
6
7
8
9
10
11
12
13
14

local function filepath()
    -- Modify the given file path with the given modifiers
    local fpath = vim.fn.fnamemodify(vim.fn.expand "%", ":~:.:h")

    if fpath == "" or fpath == "." then
        return ""
    end

    return string.format("%%<%s/", fpath)
    -- `%%` -> `%`.
    -- `%s` -> value of `fpath`.
    -- The result is `%<fpath/`.
    -- `%<` tells where to truncate when there is not enough space.
end

See :h filename-modifiers to know what the modifiers in the line 3 do.

Add it to the render function:

1
2
3
4
5
6
7
8
9
10

function Statusline.active()
    return table.concat {
        -- Before: `[%f]`
        -- `%t` shows only the file name
        "[", filepath(), "%t] ",
        git(),
        "%=",
        "%y [%P %l:%c]"
    }
end

We’ll use the function we have just created to toggle the visibility of the file path. Let’s start saving the state and adding some configuration.

1
2
3
4
5
6
7
8
9
10

-- At the start of the file
local state = {
    show_path = true,
}

local config = {
    icons = {
        path_hidden = "" -- opened directory icon
    },
}

Change the filepath function logic.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

local function filepath()
    local fpath = vim.fn.fnamemodify(vim.fn.expand "%", ":~:.:h")

    if fpath == "" or fpath == "." then
        return ""
    end

    -- Whether to show the path or the icon
    if state.show_path then
        return string.format("%%<%s/", fpath)
    end

    return config.icons.path_hidden .. "/"
end

Create a function that changes the current path status, and a keymap in order to call that function.

1
2
3
4
5
6
7
8
9

function Statusline.toggle_path()
    state.show_path = not state.show_path

    -- Draw the statusline manually
    vim.cmd("redrawstatus")
end

-- `sp` for "statusline path"
vim.keymap.set("n", "<leader>sp", function() Statusline.toggle_path() end, { desc = "Toggle statusline path" })

Perfect! Now we are able to hide the file path and show it again if we need to.

Toggle Git branch visibility

You may also have long branch names that you want to hide from time to time. So, let’s add the same functionality for them.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

local state = {
    show_branch = true,
}

local config = {
    icons = {
        branch_hidden = "", -- crossed out eye icon
    },
}


local function git()
    -- ...

    if not state.show_branch then
        head = config.icons.branch_hidden
    end

    return table.concat({
        "[ ",
        head,
        added, changed, removed,
        "]",
    })
end

function Statusline.toggle_branch()
    state.show_branch = not state.show_branch
    vim.cmd("redrawstatus")
end

-- `sb` for `statusline branch`
vim.keymap.set("n", "<leader>sb", function() Statusline.toggle_branch() end, { desc = "Toggle statusline git branch" })

That’s it!

As you can see, this is really customizable. You can do whatever you want with your statusline.

Adding color

The statusline looks already really good for me, but you may want some color. We’ll create a function to help us applying any highlight group to text.

1
2
3
4
5
6

local function hl(group, text)
    return string.format("%%#%s#%s%%*", group, text)
    -- Result: `%#group#text%*`
    -- `%#group#` tells the highlight group that must be applied to `text`.
    -- `%*` restores the normal highlight group.
end

Create a custom highlight group.

1
2
3
4
5
6
7
8

local config = {
    placeholder_hl = "StatusLineDim", -- a dim highlight group we define below
}

-- set (or link) the dim highlight once
vim.api.nvim_set_hl(0, config.placeholder_hl, {}) -- create if missing
-- link to `Comment` to keep it dim; adjust as you like
vim.api.nvim_set_hl(0, config.placeholder_hl, { link = "Comment" })

Apply it to our icons.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

local function filepath()
    -- ...

    return hl(config.placeholder_hl, config.icons.path_hidden .. "/")
end

local function git()
    -- ...

    if not state.show_branch then
        head = hl(config.placeholder_hl, config.icons.branch_hidden)
    end

    -- ...
end

Full implementation

Here you have the full statusline implemented
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

  -- internal state for toggles
  local state = {
      show_path = true,
      show_branch = true,
  }

  -- config for placeholders + highlighting
  local config = {
      icons = {
          path_hidden = "",
          branch_hidden = "",
      },
      placeholder_hl = "StatusLineDim",
  }

  -- helper to wrap text in a statusline highlight group
  local function hl(group, text)
      return string.format("%%#%s#%s%%*", group, text)
  end

  -- create and link the highlight group(s)
  vim.api.nvim_set_hl(0, config.placeholder_hl, {}) -- create if missing
  vim.api.nvim_set_hl(0, config.placeholder_hl, { link = "Comment" })

  local function filepath()
      local fpath = vim.fn.fnamemodify(vim.fn.expand "%", ":~:.:h")

      if fpath == "" or fpath == "." then
          return ""
      end

      if state.show_path then
          return string.format("%%<%s/", fpath)
      end

      return hl(config.placeholder_hl, config.icons.path_hidden .. "/")
  end

  local function git()
      local git_info = vim.b.gitsigns_status_dict
      if not git_info or git_info.head == "" then
          return ""
      end

      local head    = git_info.head
      local added   = git_info.added and (" +" .. git_info.added) or ""
      local changed = git_info.changed and (" ~" .. git_info.changed) or ""
      local removed = git_info.removed and (" -" .. git_info.removed) or ""
      if git_info.added == 0 then added = "" end
      if git_info.changed == 0 then changed = "" end
      if git_info.removed == 0 then removed = "" end

      if not state.show_branch then
          head = hl(config.placeholder_hl, config.icons.branch_hidden)
      end

      return table.concat({
          "[ ",
          head,
          added, changed, removed,
          "]",
      })
  end

  Statusline = {}

  function Statusline.active()
      return table.concat {
          "[", filepath(), "%t] ",
          git(),
          "%=",
          "%y [%P %l:%c]"
      }
  end

  function Statusline.inactive()
      return " %t"
  end

  function Statusline.toggle_path()
      state.show_path = not state.show_path
      vim.cmd("redrawstatus")
  end

  function Statusline.toggle_branch()
      state.show_branch = not state.show_branch
      vim.cmd("redrawstatus")
  end

  vim.keymap.set("n", "<leader>sp", function() Statusline.toggle_path() end, { desc = "Toggle statusline path" })
  vim.keymap.set("n", "<leader>sb", function() Statusline.toggle_branch() end, { desc = "Toggle statusline git branch" })

  vim.api.nvim_exec2([[
    augroup Statusline
    au!
    au WinEnter,BufEnter * setlocal statusline=%!v:lua.Statusline.active()
    au WinLeave,BufLeave * setlocal statusline=%!v:lua.Statusline.inactive()
    augroup END
  ]], {})

Conclusion

As you can see, customizing your statusline in Neovim is not that difficult. It might take a while, but you use Neovim, you like to spend time doing this kind of things 😉.

Leave a comment 💬 and/or a reaction 🎉 if you liked it, and share it 🙌 if you think it’s usefull.

Thanks for reading so far!

Neovim
lua statusline module
This post is licensed under CC BY 4.0 by the author.

Trending Tags

ArgoCD lua module statusline
